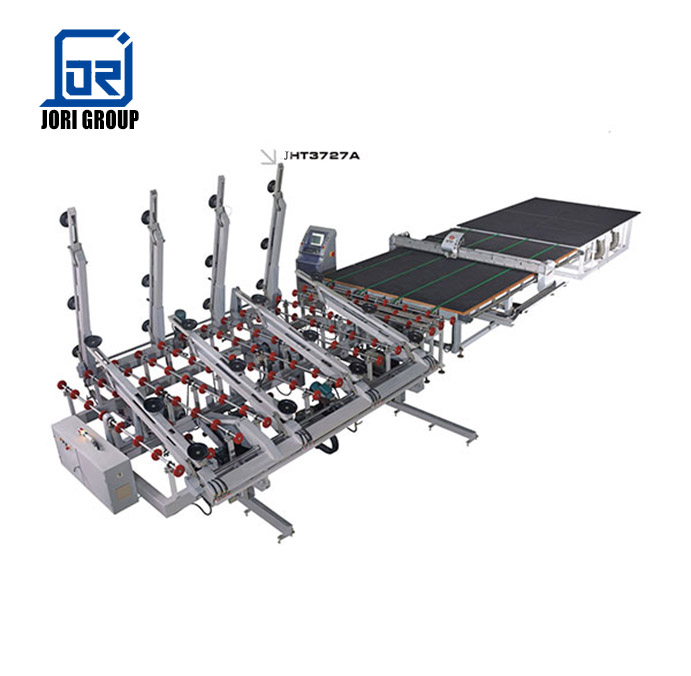

Full automatic glass cutting line is composed of three parts such as automatic loading table, full automatic glass cutting machine and Pneumatic glass breaking table, which will enable the assembly-line processing of loading, cutting, breaking.
Apply the most advanced abroad two-shaft-three-link type i-shaped design, so as to achieve precision stability under long term use and fast operational;applicble to construction curtain walls, Auto Windshield,crafts,furniture,hollow,solar glass,etc.,or set cutting linear or special-shaped glass.
| Working speed | 100-140 m/min |
|---|---|
| Max glass size | 3700*2700 mm |
| Min glass size | 1500*1500 mm |
| Glass thickness | 3~19 mm |
| Moving speed of loader | 29m/min |
| Pecision | ±0.3 mm |
| Control system | CNC Control |
| Application | Architectures Furniture Household Appliance |
| Usage | glass cutting |
| Color | Customers' Request |
| Product Keywords | New automatic glass cnc shape cutting machine with CE certificate |
